Treble booster/Tone Bender Mk2

I've had my homemade 1960's copy treble booster and Tone Bender distortion box for a about a year now and found the sounds really useful but the way they were constructed were really impractical so I decided to rebuild into one neat box and configure them in a way that would be useful on stage. I used the steel case of an old internal pc DVD drive and covered it with my last off cuts from the amp and speaker cab.

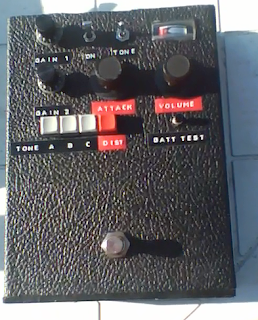

It now has two treble boosters. The top row of controls sets up the first booster (Gain 1) for my main guitar sound and the other controls the second (Gain 2) which can be switched into a following Tone bender (Red labels) for the lead solo sound (or maybe just a different song) Both treble boosters and bender are full bypass switchable so the box can stay in line all the time.The foot switch simply switches between the two channels. As there's nothing worse than a flat battery during a gig so I included a volt meter I had knocking around.
All I need to do is find some more suitable knobs. For you geeks it contains Mullard OC44,OC 75 & OC82D transistors. People are selling pedals like this on the net for silly money, there's not a lot in them but they do sound good! Btw the insides were photographed on my bench at work you can see I couldn't resist putting on one of my tested stickers!
